PRODUCT

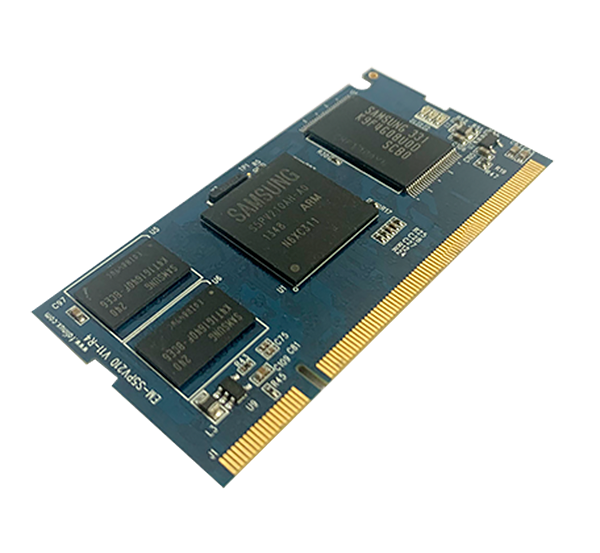

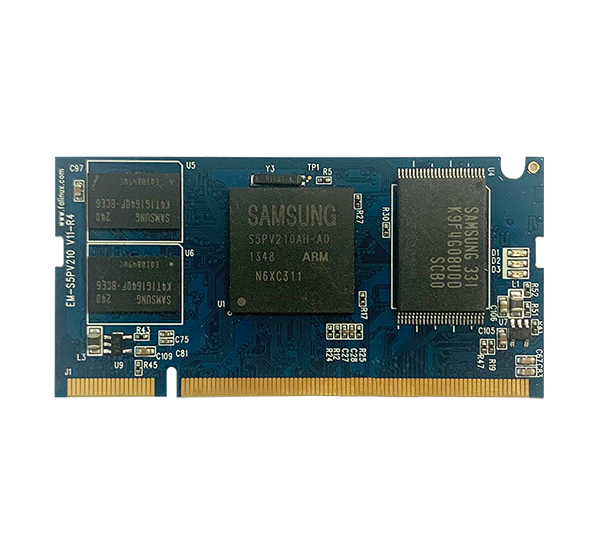

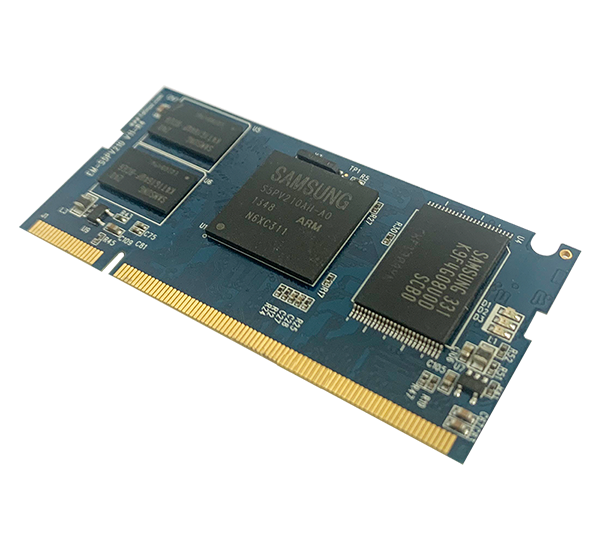

EM-S5PV210 은 SAMSUNG S5PV210 @ 1GHz (ARM Coretex A8)을 탑재한
보드로서 커널 2.6 을 채택하여 일반 사용자들도 쉽게 접할 수 있게
설계,개발된 제품입니다.
200핀 확장 커넥터를 통해 MCU상 대부분의 핀들이 연결 되어있습니다.
Application
Specification
| MCU | SAMSUNG S5PV210 @ 1GHz (ARM Coretex A8) |
|---|---|
| DDR2 | 128Mbyte (up to 256Mbyte) DDR2 x 2 |
| NAND | 512Mbyte SLC-NAND flash |
| LED | Debugging 2Bits |
| Connector | SODIMM 200-pins |
| HDMI | HDMI 1.3 |
| TFT-LCD | one 24-Bit Parallel RGB Interface |
| SD | Two Poart HS-MMC / SDIO Interface |
| CAMERA | CMOS parallel Camera Interface |
| UART | Four UARTs |
| I2C | Two I2C Ports, Up to 400 Kbit/s |
| SOUND | AC97 Stereo audio |
| ADC / Touch | 8 Channel 500K samples/sec, 12-bit Resolution |
| TV Out | NTSC / PAL Composite |
| USB | USB Host 2.0 , USB OTG 2.0 |
| GPIO | 13 Extern Interrupt , up to 98 GPIOs |
| PWM | DFour channel 32-bit Timer with PWM |
| EIM | DATA BUS(16bit), ADDRESS(16bit), Chip Select |
| LED | 3 Status LEDs |
