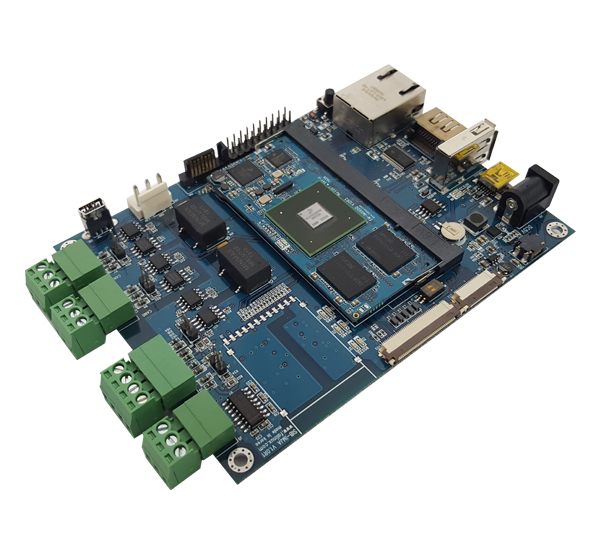

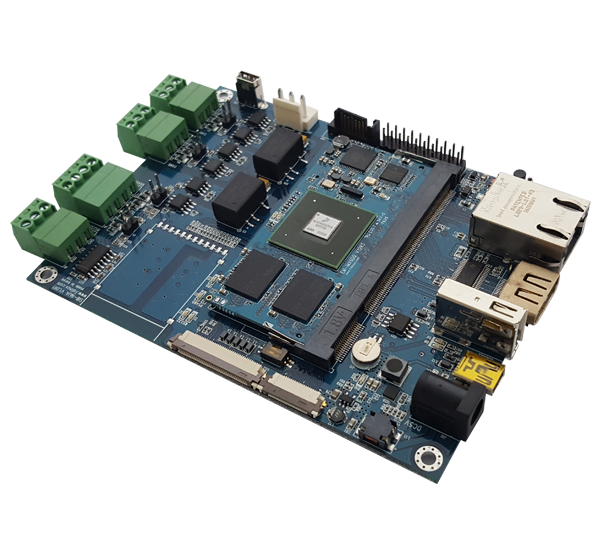

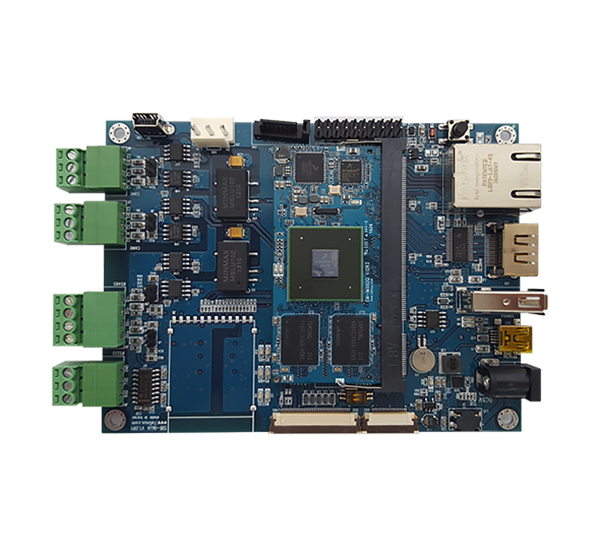

EM-IMX6DQ + SIB-IMJA

SIB-IMJA는 EM-iMX6DQ 모듈을 장착하여 RS232통신, RS485통신, CAN통신, Ethernet(10/100/1000bps), USB Host, RTC, HDMI, Wifi(Option)등의
디바이스를 제공합니다. SIB-IMJA에 제공되는 디바이스를 통하여 다양한 제어 와 통신등의 다양한 응용 제품에 적용할 수 있습니다.

Application
  • Medical Equipment
  • Computing / Storage
  • Vending Machine
  • VR Equipment
  • Cluster Servers
  • IoT Equipment
Specification
CPU ARM Cortex-A9 MPCore 4xCPU processor (with TrustZone®)
RAM 1GB, DDR3-1066, 32 bit bus width
FLASH eMMC 4Gbyte
OS Linux
HDMI HDMI 1.4
LCD One Parallel 24-bit display port
SATA SATA II, 3.0 Gbps
PCIe PCI Express port
Ethernet Gigabit Ethernet Controller (IEEE1588 compliant), 10/100/1000Mbps
SD SD Card Inerface 4bit
USB HS HOST High Speed(HS) host with integrated High Speed PHY (USB2.0)
I2S Audio Inerface
USB OTG HSUSB 2.0 OTG
Parallel Camera sensors S8-bit CSI Inerface
UART Four UARTs
EIM DATA BUS(16bit), ADDRESS(16bit), Chip Select
GPIO GPIO with interrupt capabilities
FLexCAN Two Controller Area Network, 1 Mbps each
I2C Two I2C, supporting 400 kbps
SPI One eCSPI
SD SD Card Inerface 4bit
