PRODUCT

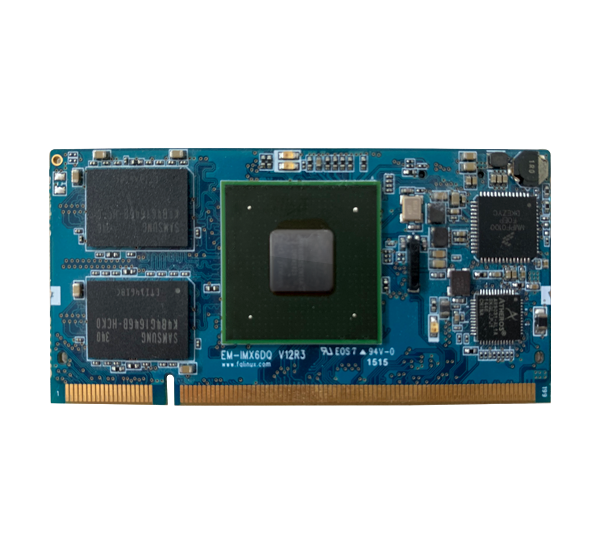

EM-IMX6DQ는 Freescale i.MX6Quad @ 1GHz (ARM Cortex-A9 MPCore™
Platform)을 탑재한 보드로서 커널 3.x 을 채택하여 일반 사용자들도
쉽게 접할 수 있게 설계 개발된 제품입니다.
EM-IMX6DQ 모듈을
사용하므로써 개발 기간의 단축 및 비용 절감, 다양한 제품 개발이
가능합니다.
Application
Specification
| CPU | Freescale i.MX6Quad @ 1GHz (ARM Cortex-A9 MPCore™ Platform) |
|---|---|
| RAM | 2Gbyte 64bit DDR3-1066 |
| SD | SD Card Inerface |
| LED | Debugging 2Bits |
| Connector | SODIMM 200-pins |
| HDMI | HDMI 1.4 |
| LCD | One Parallel 24-bit display port |
| SATA | SATA II, 3.0 Gbps |
| PCIe | PCI Express port |
| SD | SD Card Inerface 4bit |
| Ethernet | Gigabit Ethernet Controller (IEEE1588 compliant), 10/100/1000Mbps |
| I2S | Audio Inerface |
| USB HS HOST | High Speed(HS) host with integrated High Speed PHY (USB2.0) |
| USB OTG HS | USB 2.0 OTG |
| Parallel Camera sensors | 8-bit CSI Inerface |
| UART | Four UARTs |
| EIM | DATA BUS(16bit), ADDRESS(16bit), Chip Select |
| GPIO | GPIO with interrupt capabilities |
| FlexCAN | Two Controller Area Network, 1 Mbps each |
| FI2C | Two I2C, supporting 400 kbps |
| I2C | 2ch I2C, supporting 400 kbps |
| SPI | One eCSPI |
| PWM | Pulse Width Modulators |
| NAND | P8-bit NAND-Flash Inerface |
